Technical Specs

Brands

 N/A
Autonics

Model

 N/A EPM50

Type

 N/A Encoders

Maximum Response Frequency

 N/A 50 kHz

Maximum Allowable Revolution

 N/A 3,000 rpm

Starting Torque

 N/A ≤ 0.0069 N·m

Moment of Inertia

 N/A 4 x 10-6 kg·m²≤ 40 g/cm²

Allowable Radial Shaft Load

 N/A 10 kgf

Allowable Thrust Shaft Load

 N/A 2.5 kgf

Dielectric Strength

 N/A Between the charging part and the case: 750 VAC~ 50/60 Hz for 1 minute

Vibration

 N/A 1 mm double amplitude at frequency 10 to 55 Hz in each X, Y, Z direction for 2 hours

Shock

 N/A ≲ 50 G

Ambient Temperature

 N/A -10 to 70 ºC, Storage: -25 to 85 ºC (No Freezing or Condensation)

Ambient Humidity

 N/A 35 to 85% RH, Storage: 35 to 90% RH (No Freezing or Condensation)

Certification

 N/A

Features

N/A

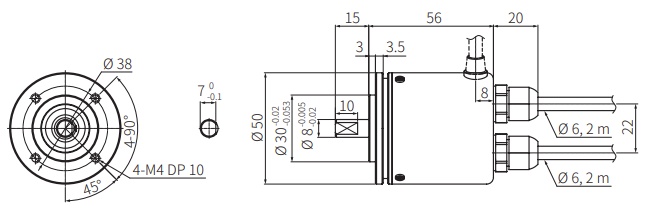

  • Ø 50 mm housing, Ø 8 mm solid shaft multi-turn absolute rotary encoders
  • Output interface options: Parallel, SSI (Synchronous Serial Interface)
  • 23-bit (8,388,608) total resolution
    • 10-bit single-turn (1,024 divisions)
    • 13-bit multi-turn (8,192 revolutions)
  • Zero-point reset with single-turn data reset and multi-turn count reset functions
  • Position memory backup
  • CW / CCW direction setting function
  • Overflow alarm (OVF) function
  • Latch function (Parallel output type only)
  • IP64 protection structure (IEC standard)
