Technical Specs

Brands

 N/A
Autonics

Model

 N/A AiA-M

Type

 N/A Stepper Motor

Run Method

 N/A Bipolar

Motor Phase

 N/A 2-Phase

Insulation Class

 N/A B Type (130ºC)

Insulation Resistance

 N/A Between the motor coil and the case: ≥ 100 MΩ (500 VDC, Megger)

Dielectric Strength

 N/A Between the all charging part and the case: 1,000 VAC ~ 50/60 Hz for 1 minute

Ambient Temperature

 N/A 0 to 50 ºC, Storage: -20 to 70 ºC (No Freezing or Condensation)

Ambient Humidity

 N/A 20 to 85% RH, Storage: 15 to 90% RH (No Freezing or Condensation)

Certification

 N/A

Features

N/A

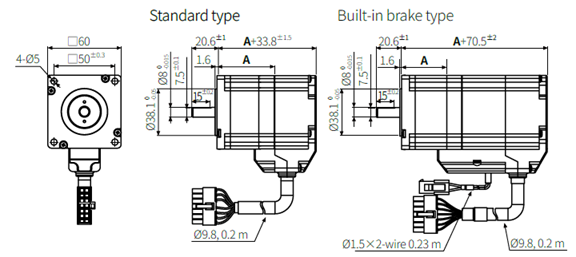

  • Supports 60 mm, 86 mm
  • Non-excitation electromagnetic built-in brake type Motor (AiA-M-B Series)
  • Maintain and inspect regularly the following lists.
    • Unwinding bolts and connection parts for the unit installation and load connection
    • Abnormal sound from Ball-bearing of the unit
    • Damage and stress of lead cable of the unit
    • Connection error with driver
    • Inconsistency between the axis of motor output and the center, concentric (eccentric, declination) of the load, etc.
  • This unit may be used in the following environments.
    • Indoors (in the environment condition rated in ‘Specifications’)
    • Altitude max. 2,000 m
    • Pollution degree 2
    • Installation category II
