Technical Specs

Brands

 N/A
Autonics

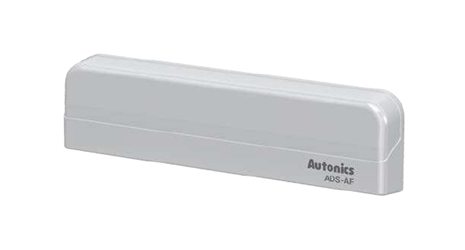

Model

 N/A ADS-A

Type

 N/A Automatic Door Sensor

Insulation Resistance

 N/A ≥ 20 MΩ (500 VDC, Megger)

Noise Immunity

 N/A ± 2,000 VDC= the square wave noise (pulse width: 1 μs) by the noise simulator

Dielectric Strength

 N/A Between the charging part and the case: 1,000 VAC ~ 50/60 Hz for 1 minute

Vibration

 N/A 1.5 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours

Shock

 N/A 100 m/s² (≈ 10 G) in each X, Y, Z direction for 3 times

Ambient Temperature

 N/A -20 to 50 ºC, Storage: -20 to 70 ºC (No Freezing or Condensation)

Ambient Humidity

 N/A 35 to 85% RH, Storage: 35 to 85% RH (No freezing or Condensation)

Certification

 N/A

Features

N/A

  • Adjustable hold time switch (2, 7, 15 sec)
  • 4-step detection angle adjustment (7.5°, 14.5°, 21.5°, 28.5°)
  • Adjustable sensing area (left / right area elimination)
  • Power supply: 24-240 VAC~ / 24-240 VDC= (universal AC / DC type), 12-24 VAC∼ / 12-24 VDC= (universal AC / DC type)
  • Built-in microprocessor
  • Max. sensing area: 2460 × 86 mm (installation height 2.7 m)
