Technical Specs

Brands

 N/A
Autonics

Model

 N/A BTF

Type

 N/A Photoelectric Sensor

Operation Mode

 N/A Light ON Mode / Dark ON Mode Model

Response Time

 N/A ≤ 1 ms

Light Source

 N/A Red

Peak Emission Wavelength

 N/A 650 nm

Indicator

 N/A Operation Indicator (Red) Stability Indicator (Green)

Insulation Resistance

 N/A ≥ 20 MΩ (500 VDC, Megger)

Dielectric Strength

 N/A Between the charging part and the case: 1,000 VAC ~ 50/60 Hz for 1 minute

Vibration

 N/A 1.5 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours

Shock

 N/A 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times

Protection Circuit

 N/A Reverse power protection circuit, output short overcurrent protection circuit

Certification

 N/A

Features

N/A

  • Ultra-thin size of only 3.7 mm

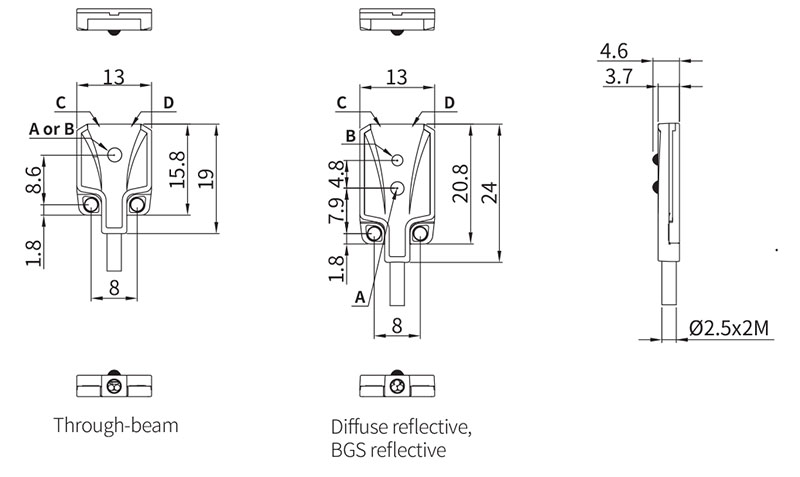

    • W 13 x H 19 x L 3.7 mm (Through-beam type)
    • W 13 x H 24 x L 3.7 mm (Diffuse reflective type, BGS reflective type)
  • Detection methods and minimum target size
    • Through-beam type (BTF1M): Ø 2 mm
    • Diffuse reflective type (BTF30): Ø 0.2 mm (sensing distance: 10 mm)
    • BGS reflective type (BTF15): Ø 0.2 mm (sensing distance: 10 mm)
  • BGS (background suppression) minimizes detection errors from background objects and the color or material of target objects.
  • Maximum sensing distance: 1 m (Through-beam type)
  • Operation indicator (red) and stability indicator (green) show operation status
  • Stainless steel (SUS304) mounting brackets
  • IP67 protection rating (IEC standard)
