Technical Specs

Brands

 N/A
Autonics

Model

 N/A PSS

Type

 N/A Pressure Sensor

Power Supply

 N/A 12 - 24 VDC ±10% (ripple P-P: ≤ 10%)

Current Consumption

 N/A Voltage output model: ≤ 15 mA

Control Output

 N/A DC 4 -20 mA ±2% F.S.

Protection Circuit

 N/A Reverse polarity protection circuit

Voltage Output

 N/A 1 - 5 VDC ±2% F.S.

Analog Output Temperature Characteristic

 N/A ≤ ±2% F.S. (in 0 to 50 ºC temperature range, at 25 ºC)

Insulation Resistance

 N/A ≥ 50 MΩ (500 VDC megger)

Dielectric Strength

 N/A Between the charging part and the case: 2,000 VAC 50/60 Hz for 1 minute

Vibration

 N/A 1.5 mm amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours

Ambient Temperature

 N/A 0 to 50 ºC, Storage: -10 to 60 ºC (No Freezing or Condensation)

Ambient Humidity

 N/A 35 to 85% RH, Storage: 35 to 85% RH (No freezing or Condensation)

Certification

 N/A

Features

N/A

  • Rated pressure range
    • Negative pressure (0 kPa to -101.3 kPa)
    • Positive pressure (0 kPa to 100.0 kPa / 0 kPa to 1000 kPa)
    • Compound pressure (-101.3 kPa to 100 kPa)

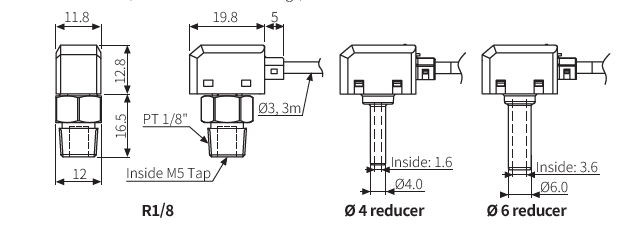

  • Compact size: W 11.8 mm × H 29.3 mm × L 24.8 mm (with pressure port)
  • Analog output: voltage (1 - 5 VDC), current (DC 4 - 20 mA)
  • Power supply: 12 - 24 VDC ±10%
