Technical Specs

Brands

 N/A
Autonics

Model

 N/A SFDL2

Type

 N/A Switch

Directing Opening Force

 N/A ≥ 80 N

Directing Opening Distance

 N/A ≥ 10 mm

Operating Speed

 N/A 0.05 to 1 ms

Operating Frequency

 N/A ≤ 20/min

Vibration (Malfunction)

 N/A 0.35 mm amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 10 minutes

Shock

 N/A 1,000 m/s² (≈ 100 G) in each X, Y, Z direction for 3 times

Shock (Malfunction)

 N/A 80 m/s² (≈ 8 G) in each X, Y, Z direction for 3 times

Ambient Temperature

 N/A -10 to 55 ºC Storage: -25 to 65 ºC (A Non Freezing or Condensation Environment)

Ambient Humidity

 N/A 35 to 85% RH, Storage: 35 to 85% RH (A Non Freezing or Condensation Environment)

Certification

 N/A

Features

N/A

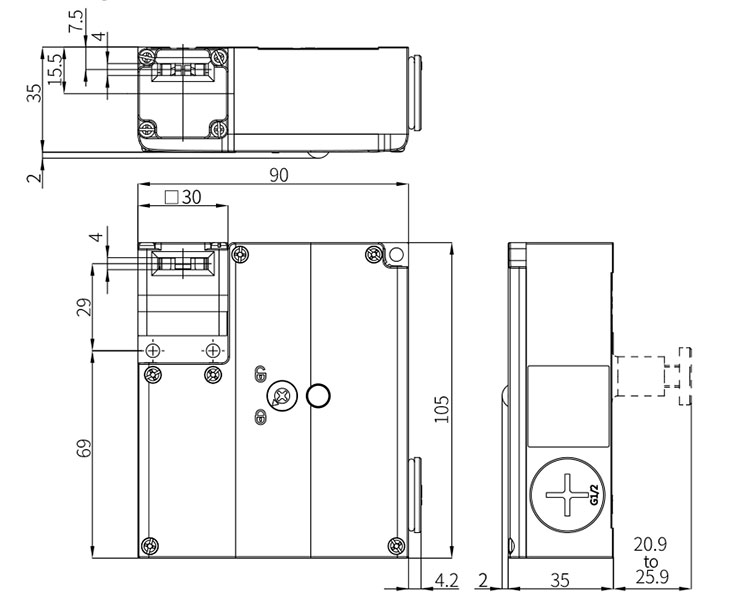

  • Slim size W 90 x H 105 x D 35.5 mm
  • Head unit can be rotated to change insert direction of operation key: Operation key can be inserted from 4 directions (top/sides)
  • Various contact types (up to 6-contacts)
    • Lock N.C. 2/N.O. 1+Door N.C. 2/N.O.1
    • Lock N.C. 3+Door N.C. 2/N.O.1
    • Lock N.C. 2/N.O. 1+Door N.C. 3
    • Lock N.C. 3+Door N.C. 3
  • Manual unlock function (release key) for emergencies during installation or testing: Standard (cross) type and special type release keys, rear release button
  • Two lock-release methods: Mechanical lock-solenoid release, solenoid lock-mechanical release models
  • Different installation types depending on operation key insertion position: Front / rear installation models
  • Excellent strength and durability with metal head model
