Technical Specs

Brands

 N/A

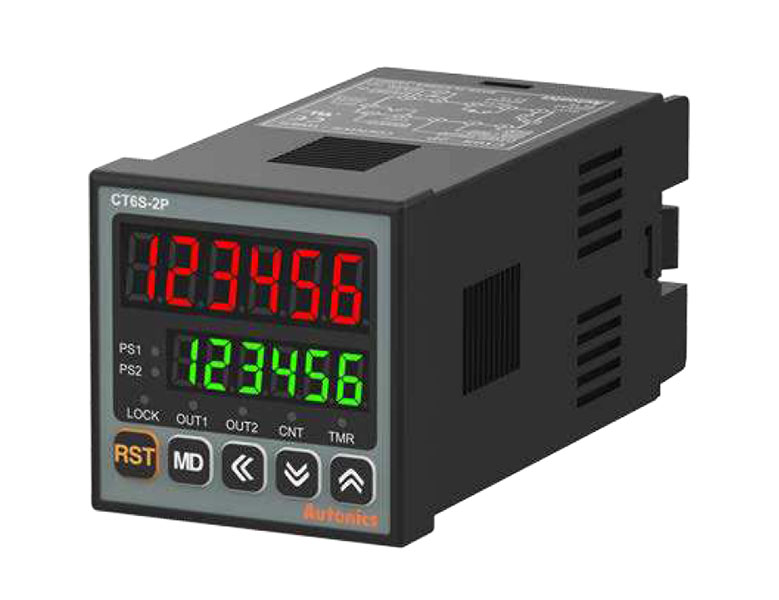

Autonics

Model

 N/A CT

Type

 N/A Counter/Timer

Display Method

 N/A 7-Segment (counting value: red, setting value: green) LED

One-Shot Output Time

 N/A 0.01 to 99.99 sec

Solid-State Control Output

 N/A Negative-Positive-Negative (NPN) Open Collector

Permissible Voltage Range

 N/A 90 to 110 % of rated voltage

Memory Retention

 N/A ≈ 10 years (Non-volatile Semiconductor Memory type)

Insulation Resistance

 N/A ≥ 100 MΩ (500 VDC, Megger)

Vibration

 N/A 0.75 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 1 hour

Vibration (Malfunction)

 N/A 0.5 mm double amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 10 minutes

Shock

 N/A 100 m/s² (≈ 30 G) in each X, Y, Z direction for 3 times

Shock (Malfunction)

 N/A 300 m/s² (≈ 10 G) in each X, Y, Z direction for 3 times

Ambient Temperature

 N/A -10 to 55 ºC, Storage: -25 to 65 ºC (No Freezing or Condensation)

Ambient Humidity

 N/A 35 to 85% RH, Storage: 35 to 85% RH (No freezing or Condensation)

Certification

 N/A

Features

N/A

  • Communication function supported (communication model): RS485 (Modbus RTU)
  • One-shot output time setting range: 0.01 sec to 99.99 sec by setting per 10ms
  • Counter
    • Prescale value setting range: 6-digit model: 0.00001 to 99999.9/4-digit model: 0.001 to 999.9
    • Various input / output modes (9 input /11 output modes)
    • BATCH counter, count Start Point (counting initial value) setting function
  • Timer
    • Various output modes (13 modes)
    • Various time setting range: 6-digit model: 0.001 sec to 99999.9 hour/4-digit model: 0.001 sec to 9999 hour
    • '0' time setting function
    • Selectable timer memory retention function for indicator model.
