Technical Specs

Brands

 N/A
Autonics

Model

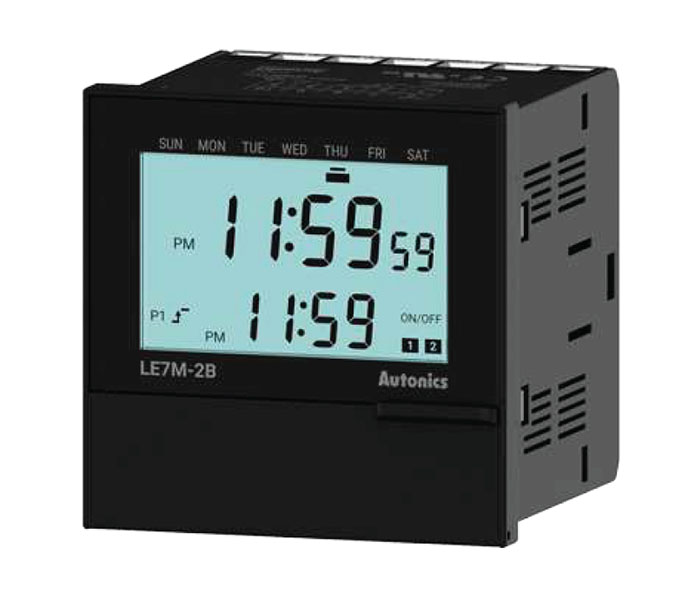

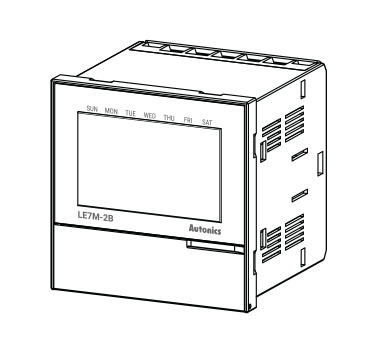

 N/A LE7M-2

Type

 N/A Timer

Permissible Voltage Range

 N/A 90 to 110 % of rated voltage

Insulation Resistive

 N/A ≥ 100 MΩ (500 VDC, Megger)

Noise Immunity

 N/A ± 2 kV square-wave noise by noise simulator (pulse width 1 µs)

Dielectric Strength

 N/A Between the charging part and the case: 3,000 VAC ~ at 50/60 Hz for 1 minute

Vibration

 N/A 0.75 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 2 hours

Vibration (Malfunction)

 N/A 0.5 mm double amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 10 minutes

Shock

 N/A 300 m/s² (≈ 30 G) in each X, Y, Z direction for 3 times

Shock (Malfunction)

 N/A 100 m/s² (≈ 10 G) in each X, Y, Z direction for 3 times

Ambient Temperature

 N/A -10 to 55 ºC, Storage: -25 to 65 ºC (No Freezing or Condensation)

Ambient Humidity

 N/A 35 to 85% RH, Storage: 35 to 85% RH (No freezing or Condensation)

Certification

 N/A

Features

N/A

  • Various external input functions
  • Clear display with built-in backlight
  • Easy to check and change the program setting
  • Customizable weekly or yearly unit time setting and control by user
  • Includes daylight saving time function
  • Built-in 2 independent control output (relay)
  • Flush mount or Surface / DIN rail mount available (depending on the model)
