The perfect totalizer for a wide range of industrial applications. Precision internal working parts are supported and protected by its die-cast frame and heavy-duty enclosure. Available with popular AC and DC voltage ranges, mounting styles, and reset features.

The 7443 Series is a good choice for new applications requiring an industrial duty counter, or for updating existing installations. Applications with poorly conditioned AC power lines are no problem. Rectifiers, which frequently fail due to power surges and transients, are not used. Instead, a precision wound coil drives AC models of 7443 Series.
Unit of Measure

Technical Specs

Brands

 N/A
Veeder-Root

Model

 N/A 7443

Type

 N/A General Purpose Totalizer

Speed

 N/A 600 cpm, 50 ms minimum on-time and off-time

Number of Figures

 N/A 6

Height

 N/A 0.188 in4.8 mm

Width

 N/A 0.160 in4.0 mm

Color of Figures

 N/A White on Black

Reset

 N/A Knob Reset; Rotary Thumbwheel Reset; Lock-and-Key Reset

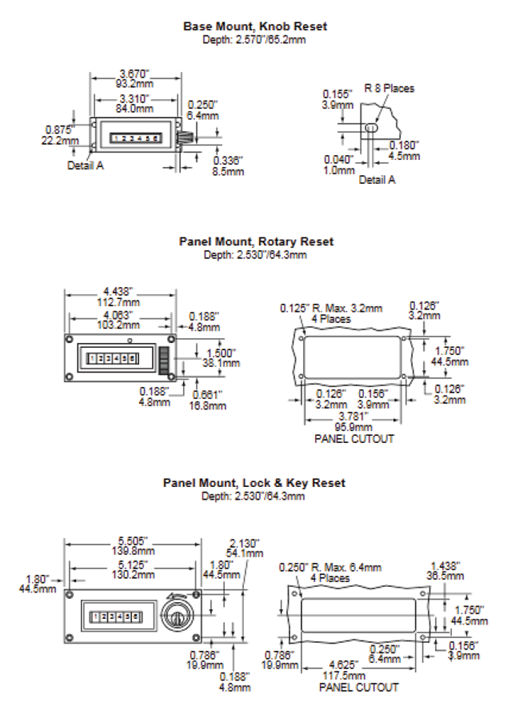

Mounting

 N/A Base Panel

Nominal Power Consumption

 N/A 6 W

Construction

 N/A Frame, Case: Die-Cast Zamak Wheels, Pinions: Acetal Resin

Features

N/A

  • Designed for industrial duty
  • Crisp modern styling
  • Recognized by Underwriters Laboratories
  • Very readable white on black characters
  • Six digit capacity
  • Count speed to 600 per minute
  • AC models have non-rectified design
  • Long service life in harsh environments
  • Lock & key reset model protects counted totals
