By providing capabilities well beyond event counting, the new V4545 Counter offers greater functionality along with the high visibility of an LED display.

Able to accept inputs from a wide variety of sources including encoders, and scale those signals into meaningful units of measure, the V4545 Preset Counter is well suited for applications such as cut-to-length and filling. Dual input channels, which can be used for reversible or quadrature counting, enhance the unit’s versatility.
Unit of Measure

Technical Specs

Brands

 N/A
Veeder-Root

Model

 N/A V4545

Type

 N/A Preset Counter

Count Speed

 N/A 20 Hz, 200 Hz, or 10 kHz (5 kHz, quadrature) field selectable

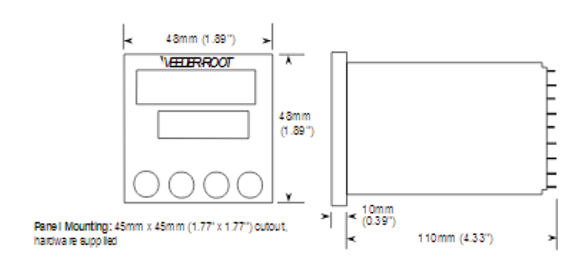

Height

 N/A 48 mm

Width

 N/A 48 mm

Depth

 N/A 110 mm

Reset

 N/A Front panel (selectable enable); remote input; or automatic

Mounting

 N/A Panel mount (mounting bracket supplied), 45 mm x 45 mm cutout

Counting Modes

 N/A Add/Subtract (A-B) or quadrature field selectable

Display

 N/A Dual line, seven segment LED
10 mm high top display; 7 mm high bottom display

Terminals

 N/A Screw Type - Combination Head

Ambient Operating Temperature

 N/A 32 to 131 ºF0 to 55 ºC

Additional Information

N/A Single or preset models are available, as is a model that can be used to direct batching operations. Each preset value features both a transistor, which can interface to an external SSR or a PLC, and a relay output for directly driving a load. Outputs can be programmed for latching or timed operation.

Ease of use is designed into the V4545 with setup being menu driven through the front panel. An auxiliary power supply simplifies wiring of inputs, and the draw-out case enhances serviceability. A universal AC power supply meets global power requirements.

Features

N/A

  • Large Dual-line LED Display for easy preset and count value viewing
  • Scale Function allows display of units
  • High Speed Counting up to 10kHz
  • Dual Input Channels
  • Input Signals accepted from a variety of sources
  • Relay and Transistor Outputs programmable for latching or timed
  • operation
  • Auxiliary 9-15 VDC supply for powering input devices
  • Multilevel Security prevents unauthorized parameter changes
  • NEMA 4X/IP65 Rated Front Panel for use in washdown environments
